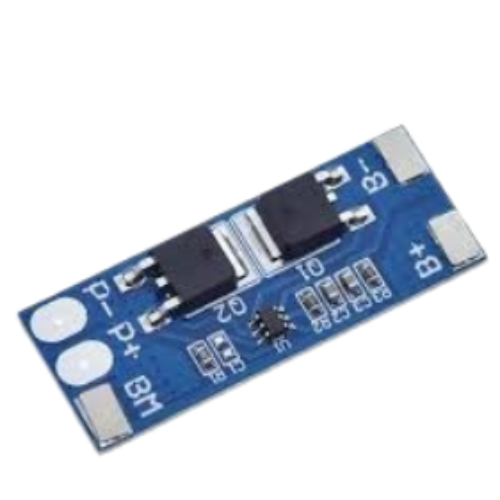

Battery Protection Board 2s 8a Bms For 18650 Lithium Ion Cells Hx-2s-jh10 in Karachi

Features:

• The attribute of the lithium battery protection board:
• Maximum working current: 8 a working temperature: – 40 – + 50 °
• Maximum instantaneous current: 10 a storage conditions: – 40 – + 80 °
• Model: HX – 2 s – D01 charging pressure range: 4.25 + / – 0.05 v to 4.35 v
• Size: 41 * 16 * 3.5 mm discharge voltage range: 2.5 + / – 0.05 v to 3.0 v
• Static electricity: less than 10 ua useful life: more than 50000 hours
• Resistance: less than 300 m Ω short circuit protection: to protect and restore must charge
• Charging voltage: 8.4 V – 9 V
• The protection plate size and device description;
• The protection plate size for 41 * 16 * 3.5 mm

Welding point:

• B. + connect battery anode;
• B. – connect battery cathode;
• MB, connect battery 1 and 2 before the join points;
• P. + correct answer the charge/discharge (charging/discharging end sharing);
• P. – answer the charge/discharge end negative (charging/discharging end sharing).

Package Includes:

1 x Battery Protection Board 2S 8A BMS For 18650 Lithium Ion Cells HX-2S-JH10
