Description
Charging module for Li-ion batteries that monitors the charge level and prevents damage to lithium batteries due to incorrect charging cycle. The module allows you to connect up to 3 batteries and charge them with a total current of up to 10A without heatsink.
Specifications:
- Model: HX-3S-01
- Overcharge detection voltage: 4.25-4.35V±0.05V
- Over-discharge detection voltage: 2.3-3.0V±0.05V
- Maximum discharge current: 10A
- Maximum working current: 5A-8A
- Transient current: 9A-10A
- Operating temperature: -40~50℃
- Storage temperature: -40~80℃
- Quiescent current: ＜6uA
- Internal resistance: ＜60mΩ
- Service life: ＞30,000 hours
- Useful life: more than 30,000 hours
Package Includes:

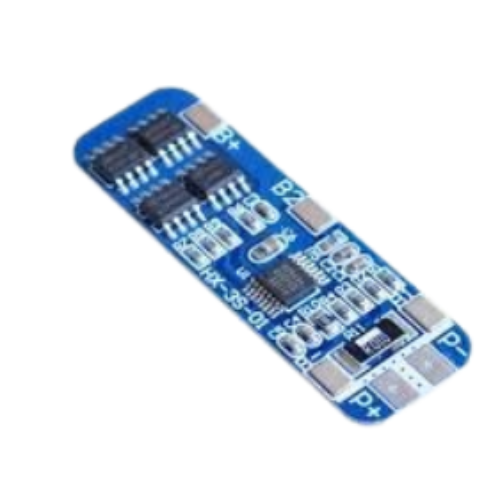

1 x 3S 10A Lithium Battery Anti-overcharge Overcharge Peak Protection Board
