Description

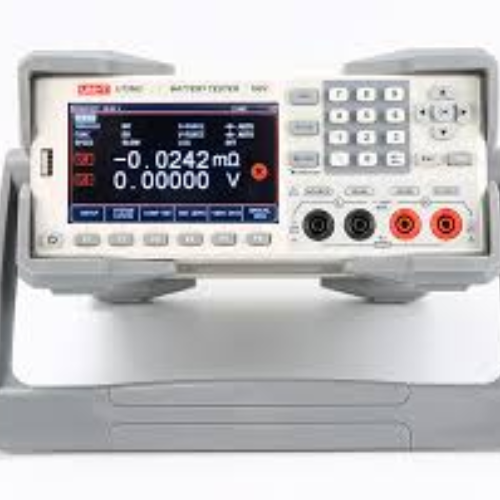

The UNI-T UT3562 battery tester is a perfect choice for an all-around battery tester. It can measure not only the usual battery voltage but also the internal resistance, battery modules, and other types of batteries such as button and lead-acid batteries. These measurements can be done at 4 different speeds: slow/medium/rapid/high-speed. Extra functions include sorting, comparing, and a beeper.
The tester also provides the user with the opportunity to manually select the measuring range for resistance and voltage. On top of that, the UT352 also has recording and data-saving capabilities to gather data more easily. This data can easily be exported for processing thanks to the multitude of connectivity options. These include USB, RS-232, Handler, SCPI, and the Modbus Protocol. The UT3562 also has a manual and automatic range function, which might be helpful for users that test a lot of batteries. It also comes with PC software.
Specifications
| Voltage | 1 V – 100 V |
| Resistance | 1 mΩ – 3 KΩ |
| Resolution | 0.1 µΩ, 10 µV |
| Accuracy | Resistance: 0.5% Voltage: 0.01% |
| Connectivity | USB (Host/Device), RS-232, Handler, SCPI, Modbus Protocol |
| Display | 4.3″ LCD, 31000 count (AC resistance) / 606000 count (DC voltage) |
| Dimensions | 340 x 214 x 89 mm |
| Weight | 2.6 kg |
Accessories
The UNI-T UT3562 battery tester comes with:
- 1 x Power cable
- 1 x Kelvin test lead
- 1 x Pen test lead
- PC software
